Round model

Round model

Round model

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Description

Round model in high resistant polyetylene PE H.D. 1000. Possibility to provide models with special dimensions, compliant to the standards indicated.

Technical table
Models D S C A B H Weight Capacity Cranes (up to) Groove
Um mm mm mm mm mm mm kg ton Ton/m mm
FSBR 60 H 5 NO GROOVE 600 - - - - 50 15 34 90 -
FSBR 80 H5 800 - - - - 50 24 43 110 550
FSBR 80 H5 NO GROOVE 800 - - - - 50 24 43 110 -
FSBR 80 H 6 800 - - - - 60 30 46 130 500
FSBR 100 H 4 NO GROOVE 1000 - - - - 40 35 54 130 -
FSBR 100 H 6 1000 - - - - 60 44 70 150 500

* price of the product vat excluded

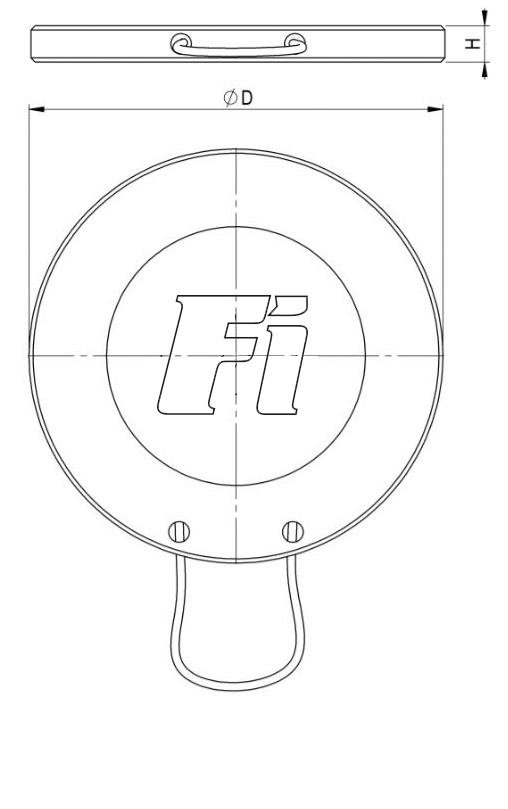

Technical schema
Documentation PDF
Catalog round model
