FW300 SX-FW750 SX

Hydraulic lifting winches FW300 SX - FW750 SX

Hydraulic lifting whinches - SX series

Uses
Suitable for aerial platforms
Suitable for loaders
Suitable for perforators
Description

New hydraulic LIFTING WINCHES SX series with improved lifting capacity and lesser encumbrance. Lifting capacity from 3100kg to 6500 kg. Available with cable pressing and microswitch, load limiting device and various accessories to complete the product. Available with verius rope lenght according to the winch capacity.

Technical table
Models 1st line pull Last line pull Rope layers Rope size Rope lenght Rope speed Weight Max flow Pressure Motor Engine torque Max torque on the drum Max back pressure on return line Gear ratio Full opening brake pressure A B Ø C D E Ø F G H Ø I
Um daN daN n° mm m m/min kg l/min bar cc/rev Nm Nm bar - bar mm mm mm mm mm mm mm mm mm
FW300 SX 3100 2200 5 13 70 34 129 75 175 100 220 5500 2 27.2 33 213 495 250 404 470 400 245 360 19
FW300 SXL 3100 2200 5 13 136 34 155 75 175 100 220 5500 2 27.2 33 413 690 250 404 490 400 245 360 19
FW350 SX 3600 2550 5 14 62 32 136 75 185 100 220 5500 2 27.3 33 213 495 250 404 470 400 245 360 19
FW350 SXL 3600 2550 5 14 128 32 160 75 185 100 220 5500 2 27.3 33 413 690 250 404 490 400 245 360 19
FW450 SX 4300 2820 5 15 58 30 140 75 195 100 220 5500 2 27.5 33 213 495 250 404 470 400 245 360 19
FW450 SXL 4300 2820 5 15 120 30 165 75 195 100 220 5500 2 27.5 33 413 690 250 404 490 400 245 360 19
FW550 SX 5500 4200 5 16 128 38 340 130 260 45 150 12300 2 92.0 19 352 700 323 500 580 500 380 410 19
FW750 SX 6500 5200 4 18 88 36 360 130 280 45 160 12300 2 92.2 19 352 700 323 500 580 500 380 410 19

* price of the product vat excluded

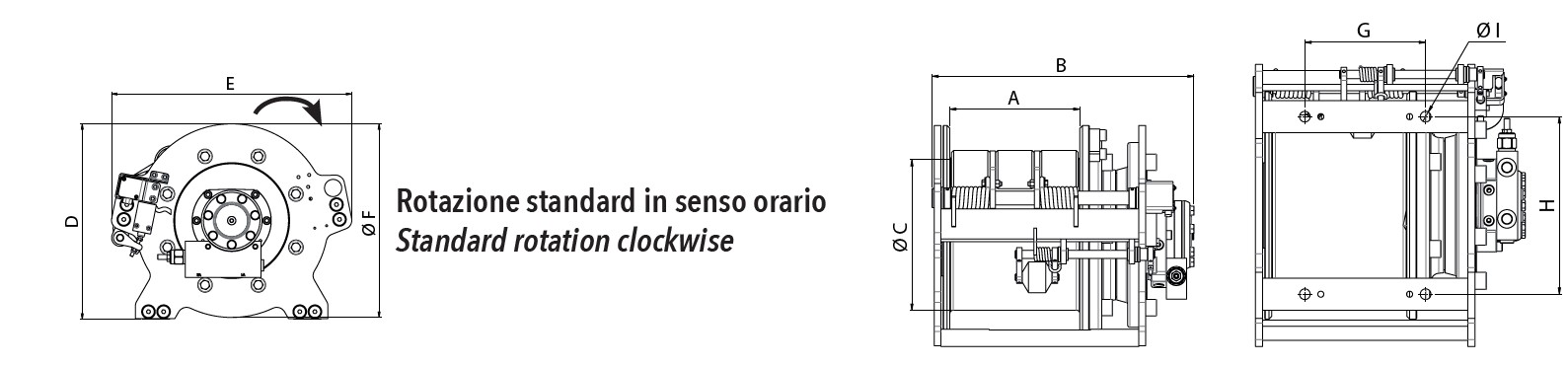

Technical schema
Documentation PDF
Catalog winches FW300SX-FW750SX
