FT 320/A 2V EYE

FT 320/A 2V EYE

2 way electro-hydraulic hose reels

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

2 way electro-hydraulic hose reels with radial attachment

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 1/2" Max reel lenght (mm) and connections - 3/8" Weight N° Contacts C L Lmax
Um ø mm mm ø 1/4" ø 1/2" ø 3/8" Kg 3÷7 Ampere ø mm ø mm ø mm
FT 320E/A325 2V R 325 86 4000* 2500 3000 17,8 2÷12 40(1/4") 66(1/2") 54(3/8") 180(1/4") 190(1/2") 190(3/8") 300(1/4") 300(1/2") 300(3/8")
FT 320E/A385 2V R 385 86 6000* 3500 5000 20,2 2÷12 40(1/4") 66(1/2") 54(3/8") 180(1/4") 190(1/2") 190(3/8") 300(1/4") 300(1/2") 300(3/8")
FT 320E/A400 2V R 400 86 7200* 4500 5500 21 2÷12 40(1/4") 66(1/2") 54(3/8") 180(1/4") 190(1/2") 190(3/8") 300(1/4") 300(1/2") 300(3/8")
FT 320E/A420 2V R 420 86 8400* 5500 6500 22,2 2÷12 40(1/4") 66(1/2") 54(3/8") 180(1/4") 190(1/2") 190(3/8") 300(1/4") 300(1/2") 300(3/8")
FT 320E/A470 2V R 470 86 11000* 6500 8000 23,8 2÷12 40(1/4") 66(1/2") 54(3/8") 180(1/4") 190(1/2") 190(3/8") 300(1/4") 300(1/2") 300(3/8")

* price of the product vat excluded

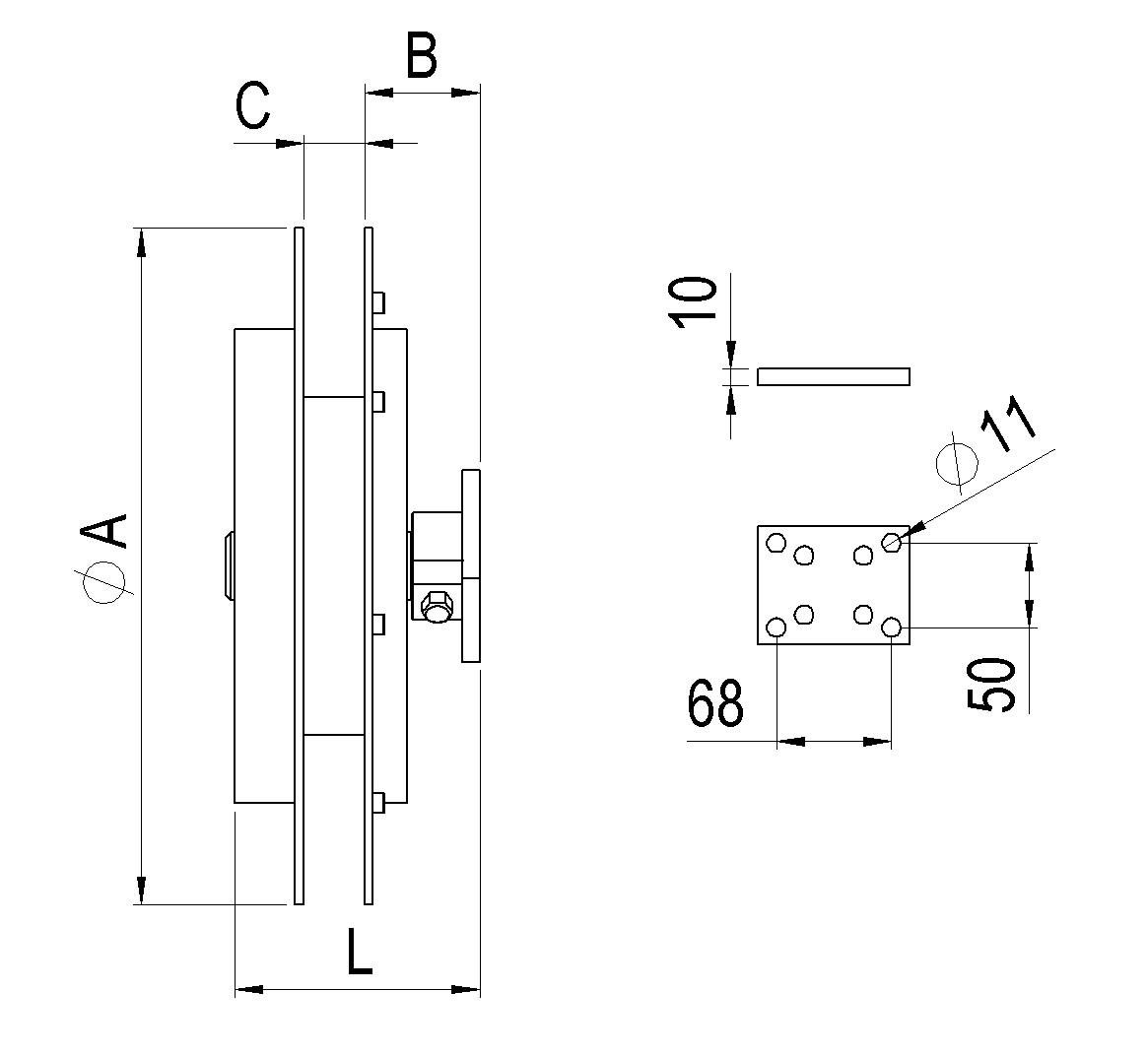

Technical schema
Documentation PDF
Catalogue FT 320/A 2V EYE
