FT 175/A 3V R

FT 175/A 3V R

3 way hydraulic hose reels with radial attachment

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

3 way hydraulic hose reels with radial attachment

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 1/2" Max reel lenght (mm) and connections - 3/8" Weight C L
Um ø mm mm ø 1/4" ø 1/2" ø 3/8" Kg ø mm ø mm
FT 175/A325 3V R 325 73 4000 - - 14 40(1/4") 157(1/4")
FT 175/A370 3V R 370 73 5500 - - 15 40(1/4") 157(1/4")
FT 175/A385 3V R 385 73 6000 - - 16 40(1/4") 157(1/4")
FT 175/A400 3V R 400 73 7200 - - 16.5 40(1/4") 157(1/4")
FT 175/A420 3V R 420 73 8400 - - 17.5 40(1/4") 157(1/4")
FT 175/A470 3V R 470 73 11000 - - 18,5 40(1/4") 157(1/4")
FT 175/A500 3V R 500 73 12500 - - 21,5 40(1/4") 157(1/4")

* price of the product vat excluded

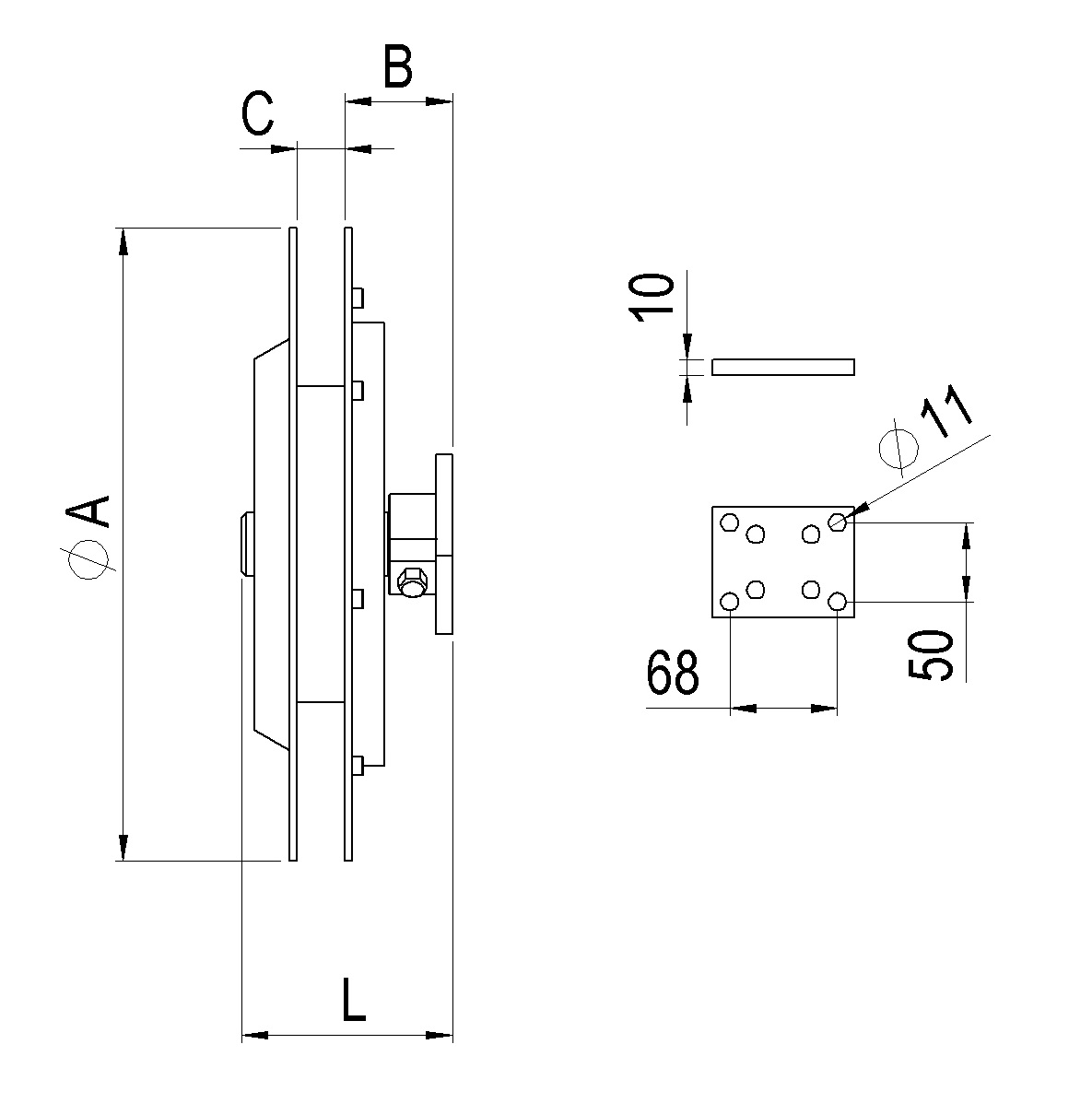

Technical schema
Documentation PDF
Catalogue FT 175/a 3V R
