FT 170/A 3V R EYE

FT 170/A 3V R EYE

3 way hydarulic hose reels with radial attachment

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

3 way hydarulic hose reels with radial attachment. For hoses with eye-fitting and" bonded-seals" washers

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 1/2" Max reel lenght (mm) and connections - 3/8" Weight C L
Um ø mm mm ø 1/4" ø 1/2" ø 3/8" Kg ø mm ø mm
FT 170/A200 3V R EYE 200 87 1500 - - 15 40(1/4") 54(3/8") 200(1/4") 210(3/8")
FT 170/A270 3V R EYE 270 87 2500 - 1800 16 40(1/4") 54(3/8") 200(1/4") 210(3/8")
FT 170/A300 3V R EYE 300 87 4000 - 2700 16.5 40(1/4") 54(3/8") 200(1/4") 210(3/8")
FT 170/A325 3V R EYE 325 87 5000 - 3500 17,5 40(1/4") 54(3/8") 200(1/4") 210(3/8")
FT 170/A385 3V R EYE 385 87 7000 - 5500 18.5 40(1/4") 54(3/8") 200(1/4") 210(3/8")
FT 170/A235 3V R EYE 235 87 2000 - - 6 40(1/4") 54(3/8") 200(1/4") 210(3/8")
FT 170/A340 3V R EYE 340 87 5200 - 4000 12,5 40(1/4") 54(3/8") 200(1/4") 210(3/8")

* price of the product vat excluded

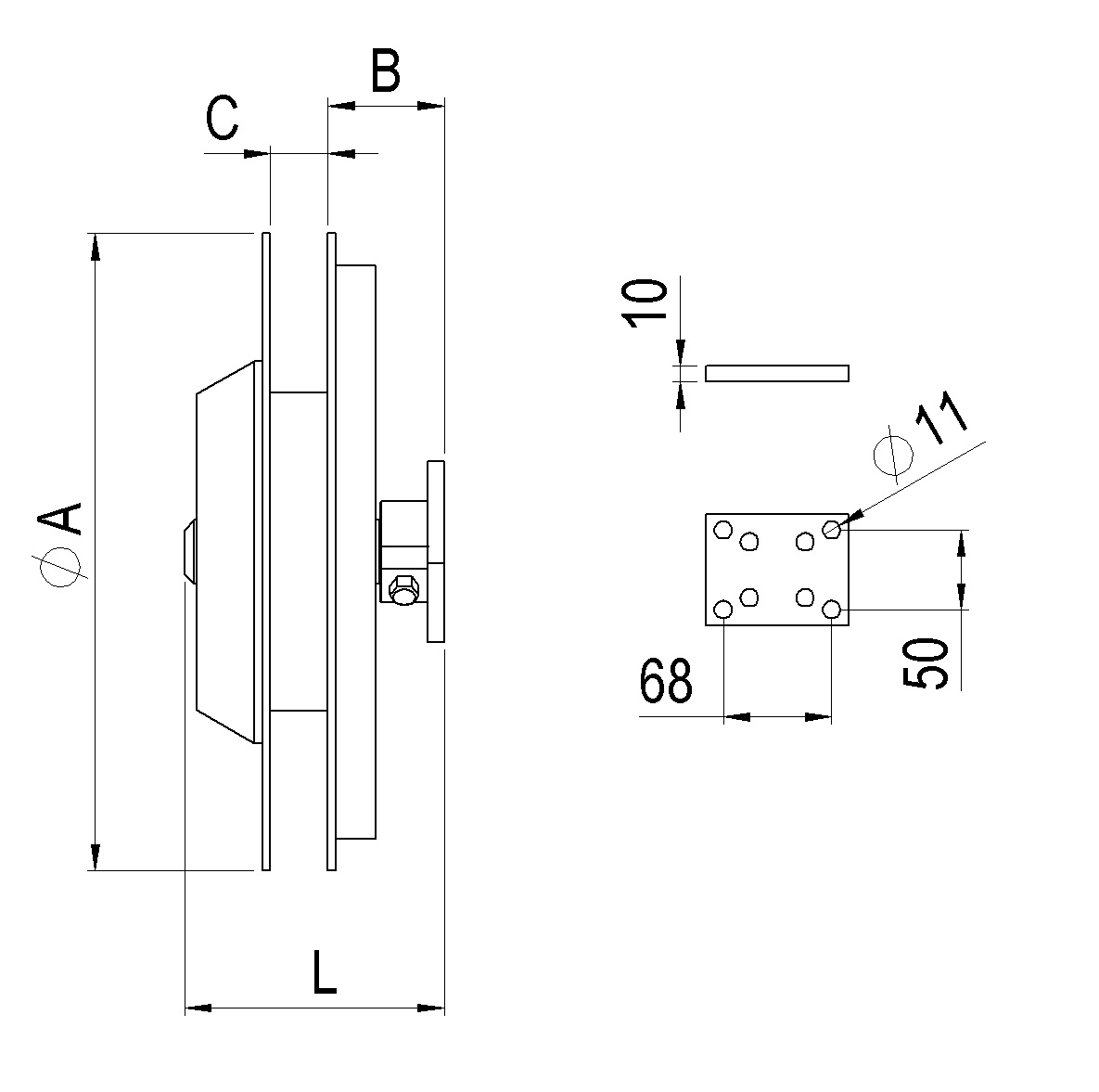

Technical schema
Documentation PDF
Catalogue FT 170/A 3V R EYE
