Ft 140/A 2V R

Ft 140/A 2V R

2 Way hydraulic hose reels with radial attachment.

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

2 Way hydraulic hose reels with radial attachment.

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 1/2" Max reel lenght (mm) and connections - 3/8" Weight C L
Um Ø mm mm Ø 1/4" Ø 1/2" Ø 3/8" kg Ø mm Ø mm
FT 140/A325 2V R 325 84 4000 2500 3000 11 46(1/2") 36(3/8") 181(1/2") 167(3/8")
FT 140/A370 2V R 370 84 5500 3300 4500 12 46(1/2") 36(3/8") 181(1/2") 167(3/8")
FT 140/A385 2V R 385 84 6000 3500 5000 13,5 46(1/2") 36(3/8") 181(1/2") 167(3/8")
FT 140/A400 2V R 400 84 7200 4500 6000 14 46(1/2") 36(3/8") 181(1/2") 167(3/8")
FT 140/A420 2V R 420 84 8400 5500 6500 14,5 46(1/2") 36(3/8") 181(1/2") 167(3/8")
FT 140/A470 2V R 470 84 11000 6500 8000 16 46(1/2") 36(3/8") 181(1/2") 167(3/8")
FT 140/A340 2V R 340 84 4500 3000 3500 11,7 46(1/2") 36(3/8") 181(1/2") 167(3/8")

* price of the product vat excluded

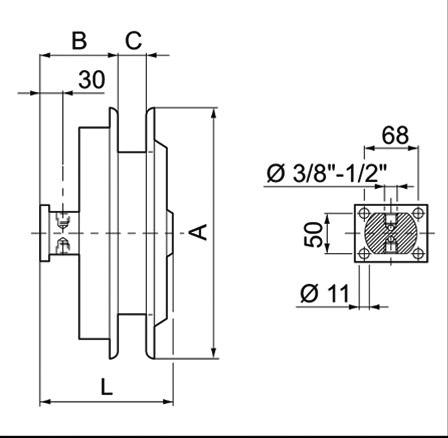

Technical schema
Documentation PDF
Catalog FT 140/A 2V R
