FT 130/A 2V R EYE

FT 130/A 2V R EYE

2 Way hydraulic hose reels with radial attachment

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

2 Way hydraulic hose reels with radial attachment. For hoses with eye-fitting and "bondes seals" washers.

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 3/8" Weight C L
Um Ø mm mm Ø 1/4" Ø 3/8" kg Ø mm Ø mm
FT 130/A200 2V R EYE 200 65 1500 - 6(1/4") 27(1/4") 36(3/8") 152(1/4") 160(3/8")
FT 130/A270 2V R EYE 270 65 2500 1800 9,5(1/4") 10(3/8") 27(1/4") 36(3/8") 152(1/4") 160(3/8")
FT 130/A300 2V R EYE 300 65 4000 2700 10(1/4") 11(3/8") 27(1/4") 36(3/8") 152(1/4") 160(3/8")
FT 130/A325 2V R EYE 325 65 5000 3500 11,5(1/4") 12,5(3/8") 27(1/4") 36(3/8") 152(1/4") 160(3/8")
FT 130/A385 2V R EYE 385 65 7000 5500 12,5(1/4") 15,5(3/8") 27(1/4") 36(3/8") 152(1/4") 160(3/8")
FT 130/A235 2V R EYE 235 65 2000 - 6(1/4") 27(1/4") 36(3/8") 152(1/4") 160(3/8")
FT 130/A340 2V R EYE 340 65 5200 4000 12,5(1/4") 16(3/8") 27(1/4") 36(3/8") 152(1/4") 160(3/8")

* price of the product vat excluded

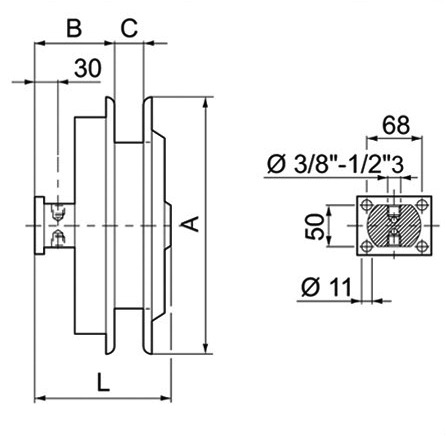

Technical schema
Documentation PDF
Catalog FT 130/A 2V R EYE
