FSB SL

Square and rectangular models

Stabilizer pads in high resistant polyetylene

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Description

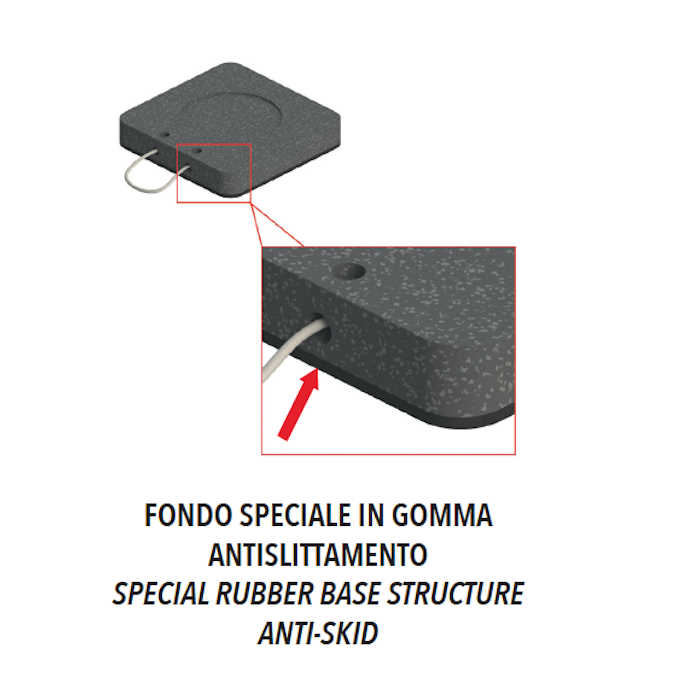

Stabilizer pads with an anti-skid rubber surface, in high resistant polyetylene. Possibility to provide models with special dimensions, compliant to the standards indicated. Ideal for utilization on slippery surfaces and for internal pavimentation.

Technical table
Models Dimension Weight Capacity Cranes (up to) Groove
Um cm kg ton Ton/m mm
FSB 20 SL 20x20x3 1,2 5 5 120
FSB 25 SL 25x25x3 2 6 6 120
FSB 30 SL 30x30x2 2 6 7 220
FSB 30 SL 30x30x3 2,7 8 10 220
FSB 30 SL 30x30x4 3,6 12 16 220
FSB 40 SL 40x40x4 6,2 14 18 300
FSB 40 SL 40x40x5 8,3 17 22 300
FSB 50 SL 50x30x4 5,2 12 16 200 x 460
FSB 50 SL 50x50x4 10,3 22 25 300
FSB 50 SL 50x50x5 12,9 25 40 300
FSB 50 SL 50x50x6 15,5 29 50 300
FSB 60 SL 60x30x4 7 17 22
FSB 60 SL 60x60x4 15 30 30 400
FSB 60 SL 60x60x5 18,5 32 80 400
FSB 60 SL 60x60x6 21,5 36 90 510
FSB 70 SL 70x70x6 30 40 100 400
FSB 80 SL 80x80x5 33 43 110 500
FSB 80 SL 80x80x6 40 47 120 500
FSB 100 SL 100x100x4 40,5 49 140 500
FSB 100 SL 100x100x5 49,5 54 150 500
FSB 100 SL 100x100x6 60 66 160 500

* price of the product vat excluded

Technical schema
Documentation PDF
Catalog FSB SL
