FSB R

Conic and round models

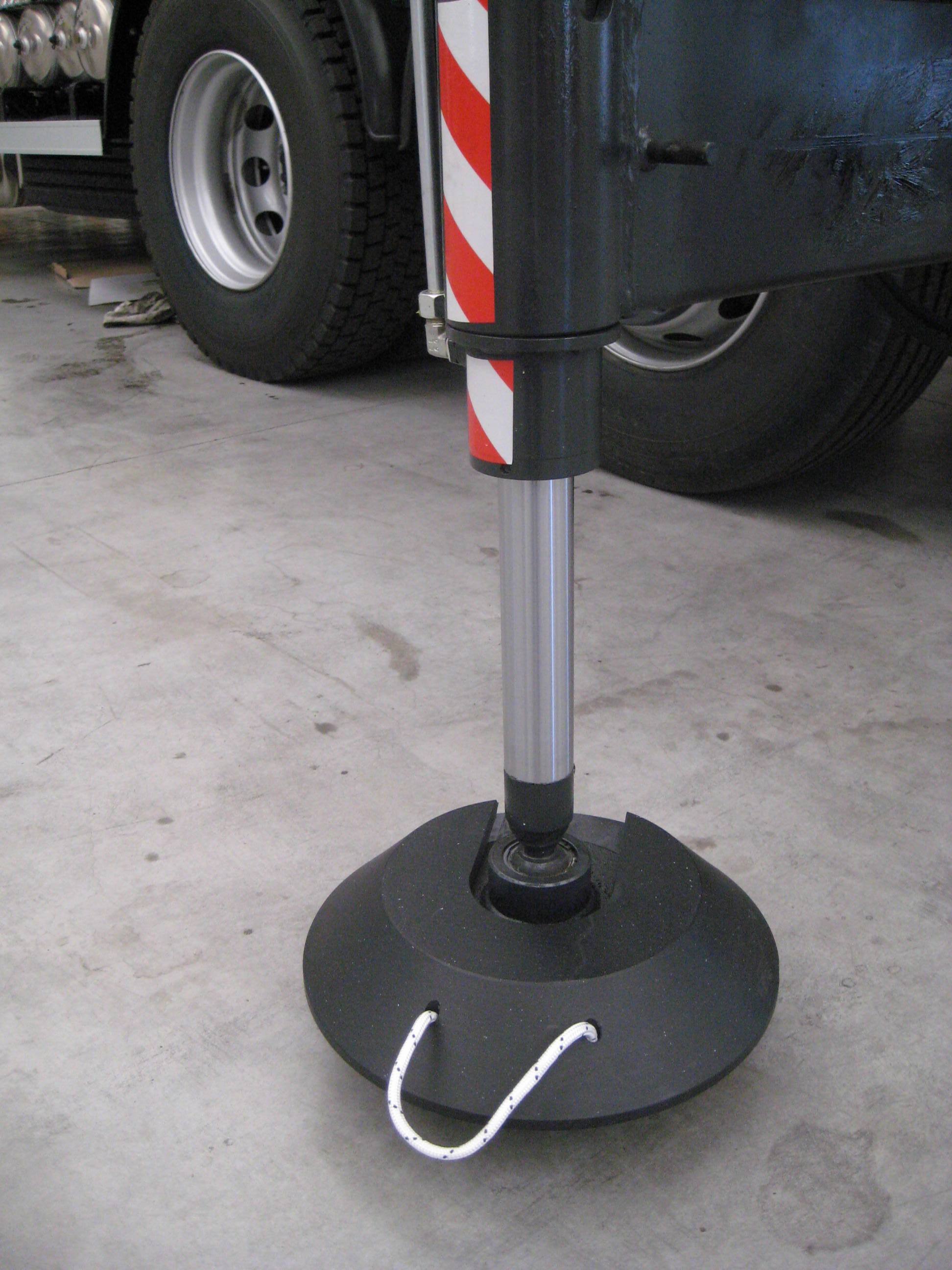

Conic pad

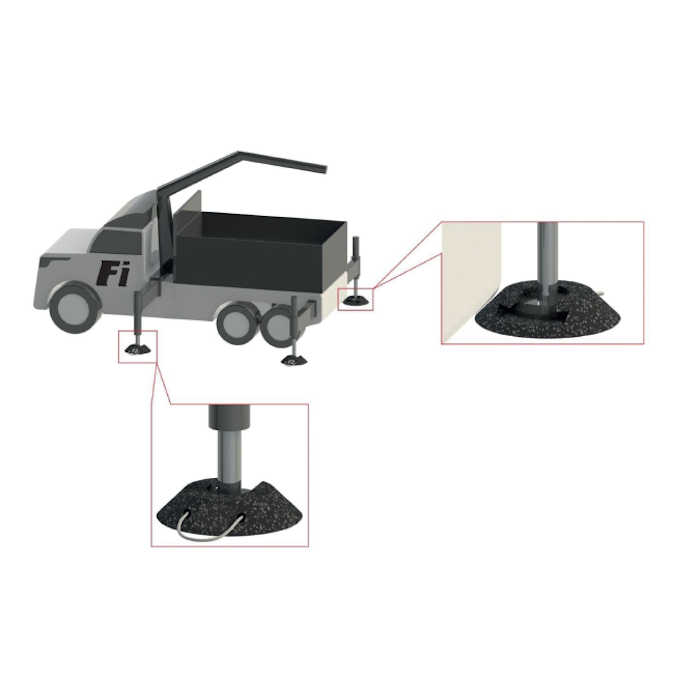

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms

Description

Conic pad with slot PE H.D. 1000 in high resistant polyetylene. Possibility to provide models with special dimensions, compliant to the standards indicated.

Technical table
Models D S C A B H Weight Capacity Cranes (up to)
Um mm mm mm mm mm mm kg ton Ton/m
FSBR 30x16 H8 300 30 30 60 160 80 2,6 14 20
FSBR 30x20 H 8 300 30 30 120 200 80 2,3 14 20
FSBR 40x20 H 8 400 30 30 120 200 80 4,2 22 30
FSBR 40x21 H8 400 30 30 90 210 80 5,3 22 30
FSBR 50x25 H 8 500 30 30 120 255 80 8,8 29 50
FSBR 50x21 H 8 500 30 30 110 210 80 9,4 29 50
FSBR 60x21 H 8 600 30 30 110 210 80 14,8 36 85

* price of the product vat excluded

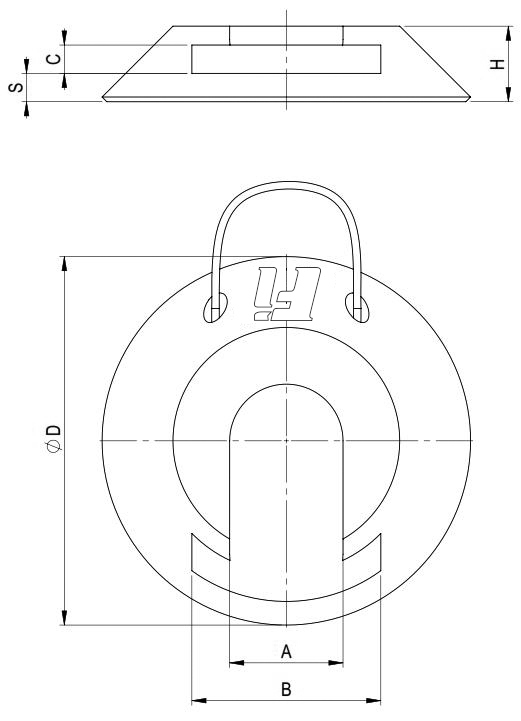

Technical schema
Documentation PDF
Catalog FSB R
