FLG XSR

Log grabs

Log grabs

Uses
boom trucks
Suitable for loaders
Suitable for excavator

Description

Log grabs with appropriate grabbing power, especially designed also for grabbing for waste material. > High resistence and high flexibility material > New geometry studied to impose a stronger grabbing power > Pins with inner lubrification system and alveolar type bushings > Ready for all types of rotators

Technical table
Models Weight Load capacity Area Force Pressure B C D E F Suggested rotator
Um Kg Kg mq Kn bar mm mm mm mm mm type
FLG 23 XS-R 110 3000 0,23 16 250 460 350 695 1260 740 FR 50 - FR 50 F - FR 55 - FR 55 F
FLG 33 XS-R 180 5000 0,28 18 250 540 430 800 1500 865 FR 55 - FR 55 F - FR 85 SX - FR 85 SX-F
FLG 43 XS-R 240 6000 0,4 20 250 610 515 820 1870 970 FR 85 SX - FR 85 SX-F - FR 128 SX-F

* price of the product vat excluded

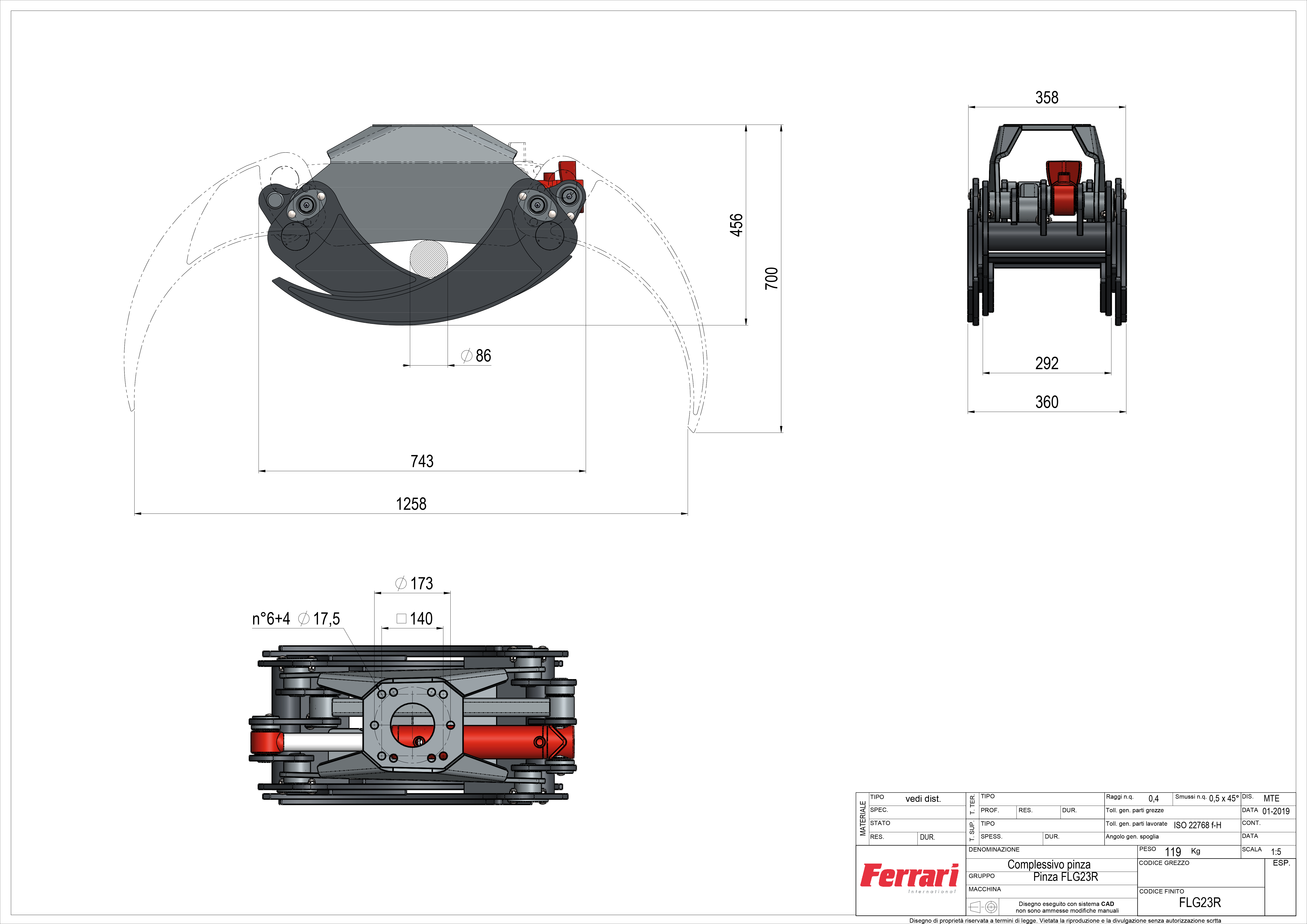

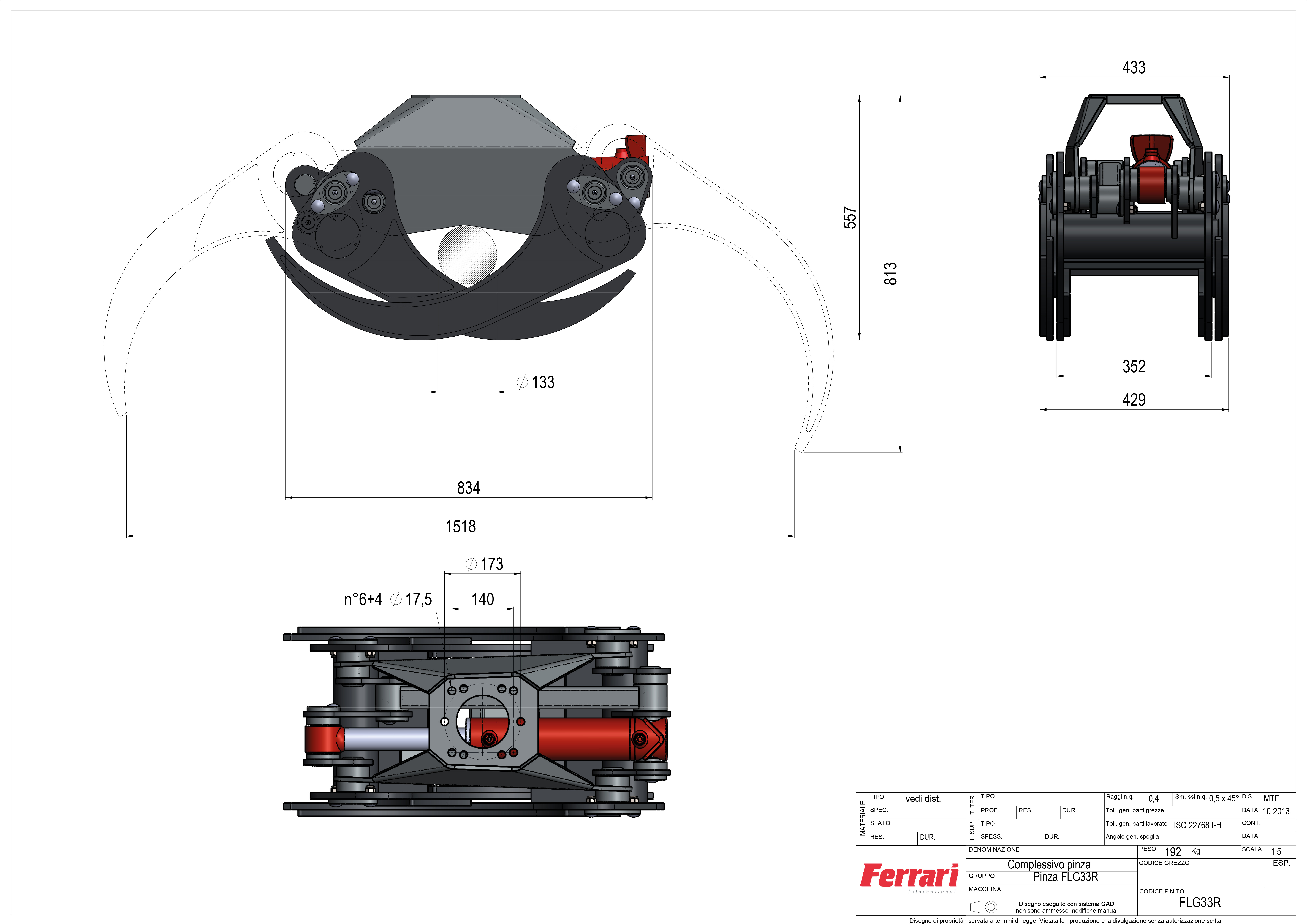

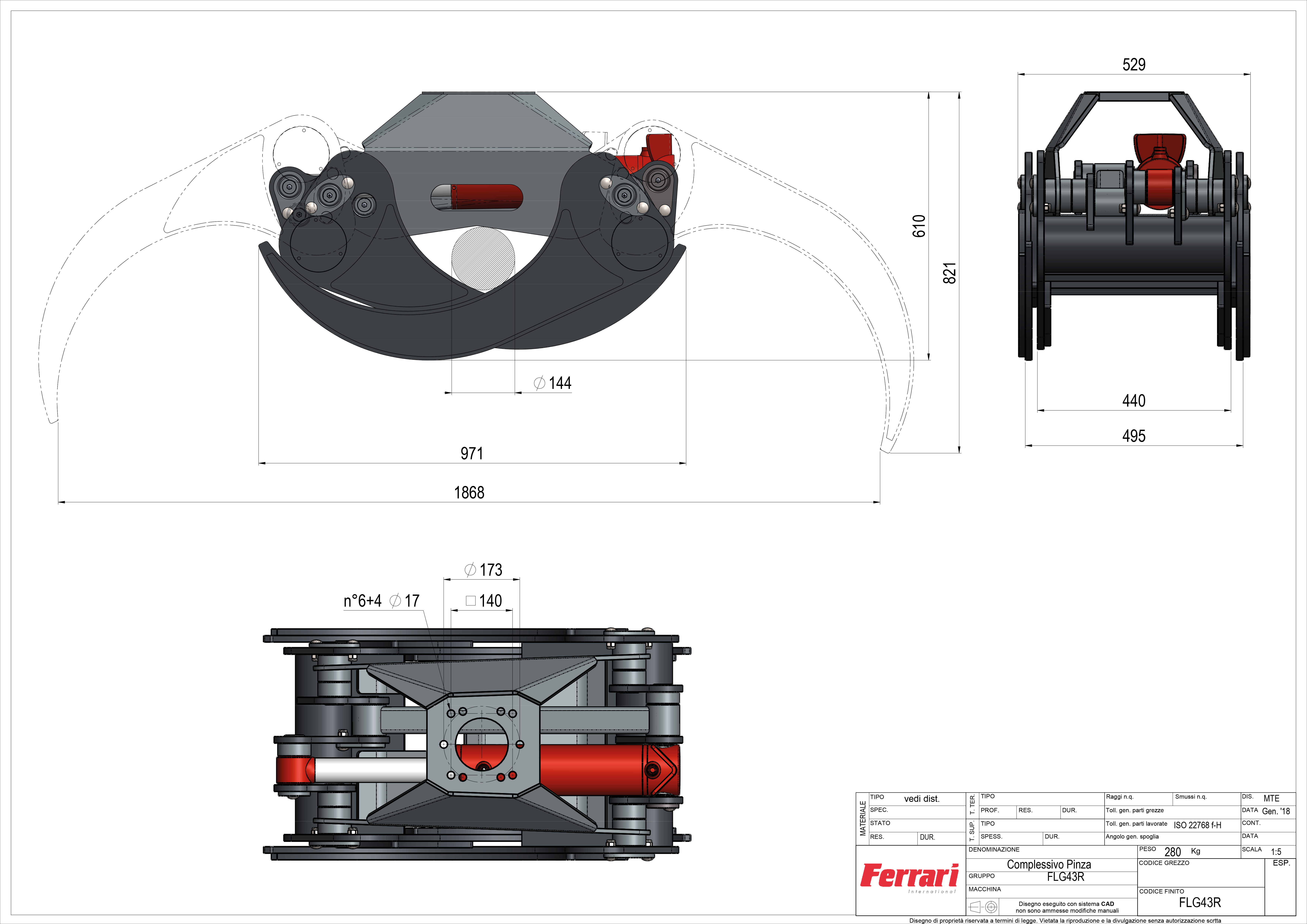

Technical schema
Documentation PDF
Catalog FLG XSR
