FLG COMBY

Log grabs

Log grabs

Uses
boom trucks
Suitable for loaders
Suitable for excavator
Description

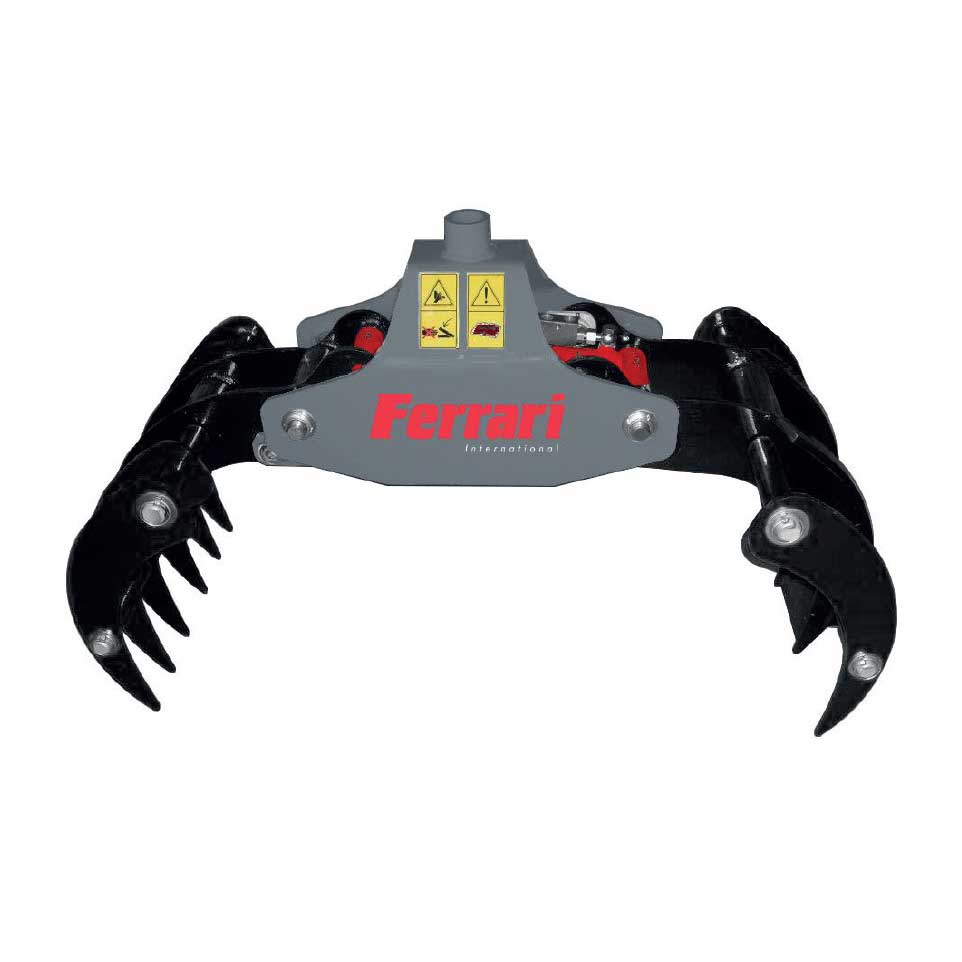

Log grabs for the forestry industry made in Domex 710 equipped with block valve, useful for picking up branches and various materials, possibility to mount additional teeth or dismountable sides.

Technical table
Models Weight Load capacity Area Pressure A B C D E F G G1 Teeth - G2 Sides SP Suggested rotator
Um Kg kg mq bar mm mm mm mm mm mm mm mm mm type
FLG 15 L COMBY 105 1200 0,15 200 1000 730 405 450 460 65 310 650 10 FR 15
FLG 15 SX COMBY 122 1400 0,15 250 1000 730 405 450 460 65 310 650 10 FR 15

* price of the product vat excluded

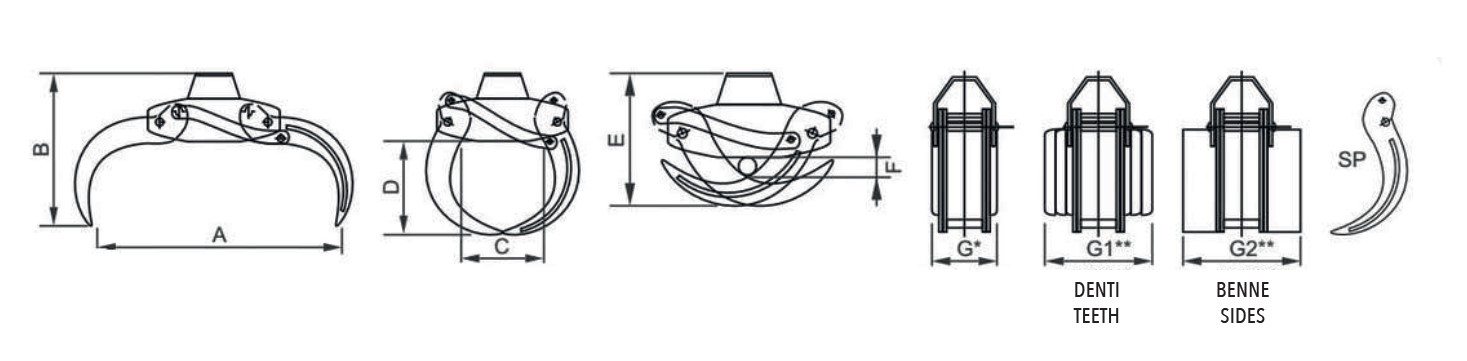

Technical schema
Documentation PDF
Catalog FLG Comby
