Fixed stabilizer

Fixed stabilizer

Additional fixed stabilizer

Uses
boom trucks
Suitable for aerial platforms

Description

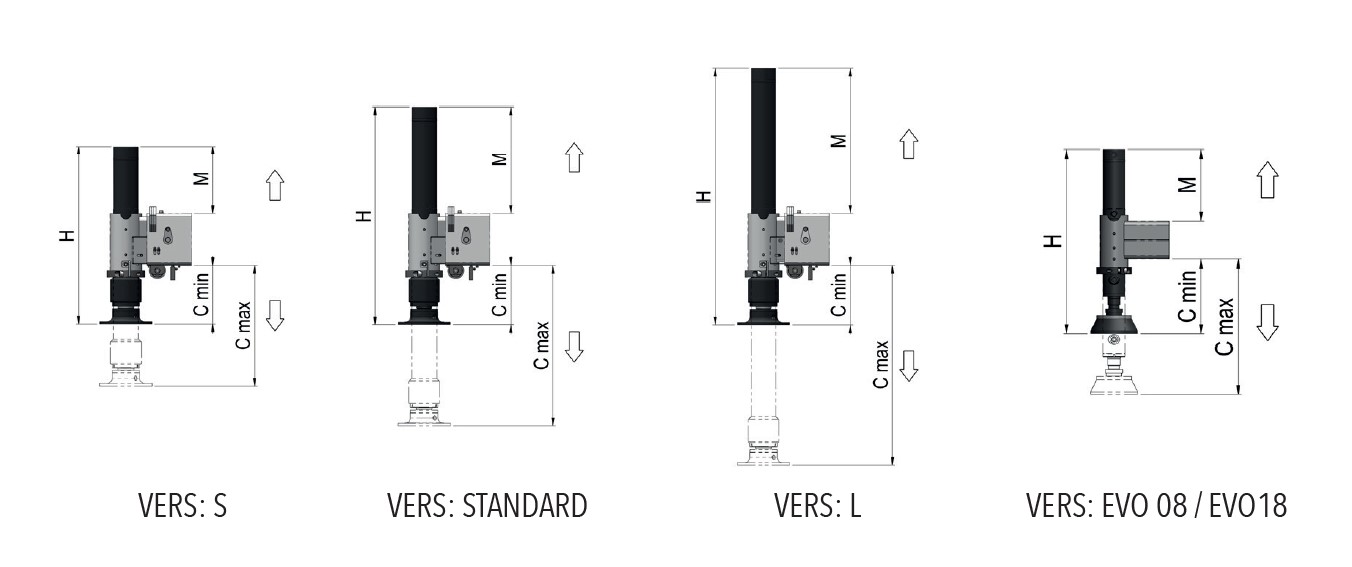

Last generation Fixed stabilizers with adjustable height of the cylinder with new locking system, standard on all models. Available with different length of the stabilizer cylinder.

Technical table
Models Crane R max Weight A B X hxb C Min C Max D E F G
Um Ton/m daN Kg mm mm mm mm mm mm mm mm mm mm mm
EVO 08 1.6/L F 2>6 2500 66 1600 - 1750 120x80 220 470 400 70 40 600 150
EVO 08 1.6 F 2>6 2500 63 1600 - 1750 120x80 220 400 330 70 40 540 150
EVO 08 1.8/L F 2>6 2500 68 1800 - 1950 120x80 220 470 400 70 40 600 150
EVO 08 1.8 F 2>6 2500 65 1800 - 1950 120x80 220 400 330 70 40 540 150
EVO 18 2.0 F 6>12 3100 77 2000 - 2150 120x80 220 470 400 70 40 600 150
EVO 28 2.0/L F 12>25 6300 124 2000 - 2200 180x100 240 630 605 85 60 860 200
EVO 28 2.0 F 12>25 6300 116 2000 - 2200 180x100 240 475 450 85 60 710 200
EVO 38 2.1/L F 19>36 8300 173 2100 - 2300 200x100 240 715 696 95 60 970 200
EVO 38 2.1 F 19>36 8300 163 2100 - 2300 200x100 240 545 550 95 60 830 200
EVO 38 2.1/S F 19>36 8300 153 2100 - 2300 200x100 240 400 400 95 60 680 200

* price of the product vat excluded

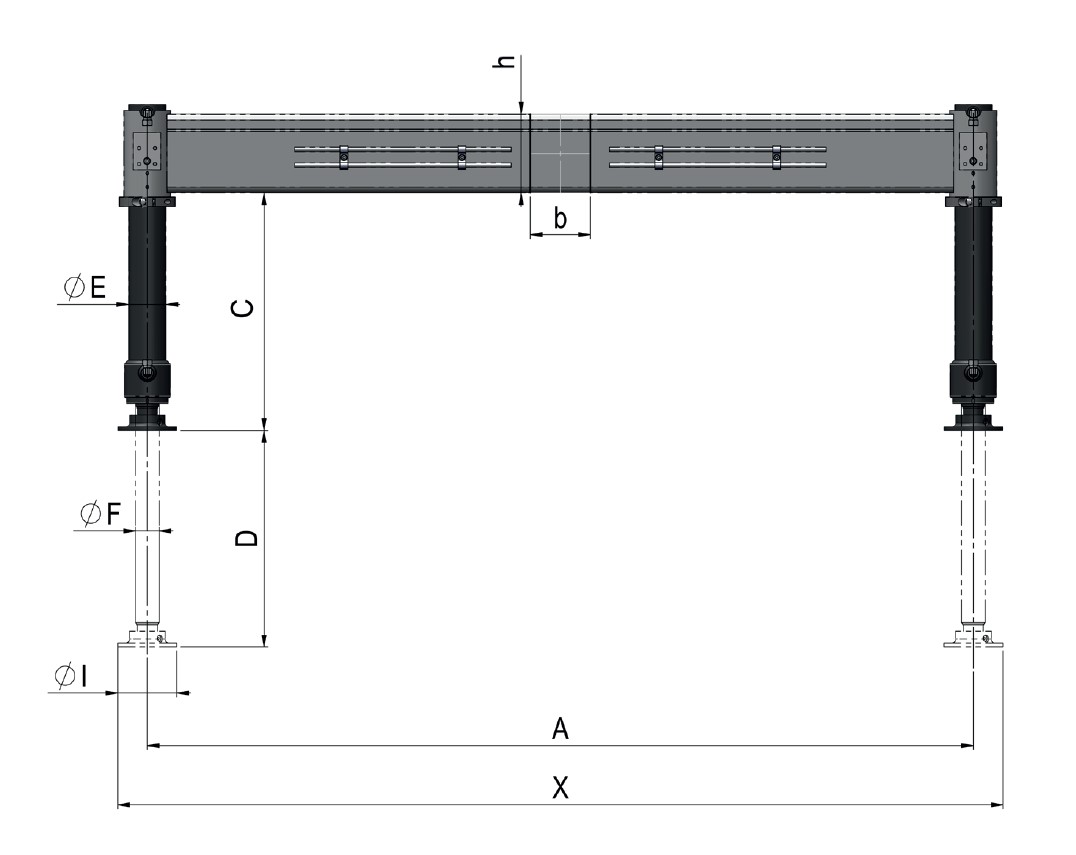

Technical schema
Documentation PDF
Catalog Fixed stabilizer
