Clamshell buckets FCB Clamshell buckets
FCB SX HOLE
FCB SX HOLE

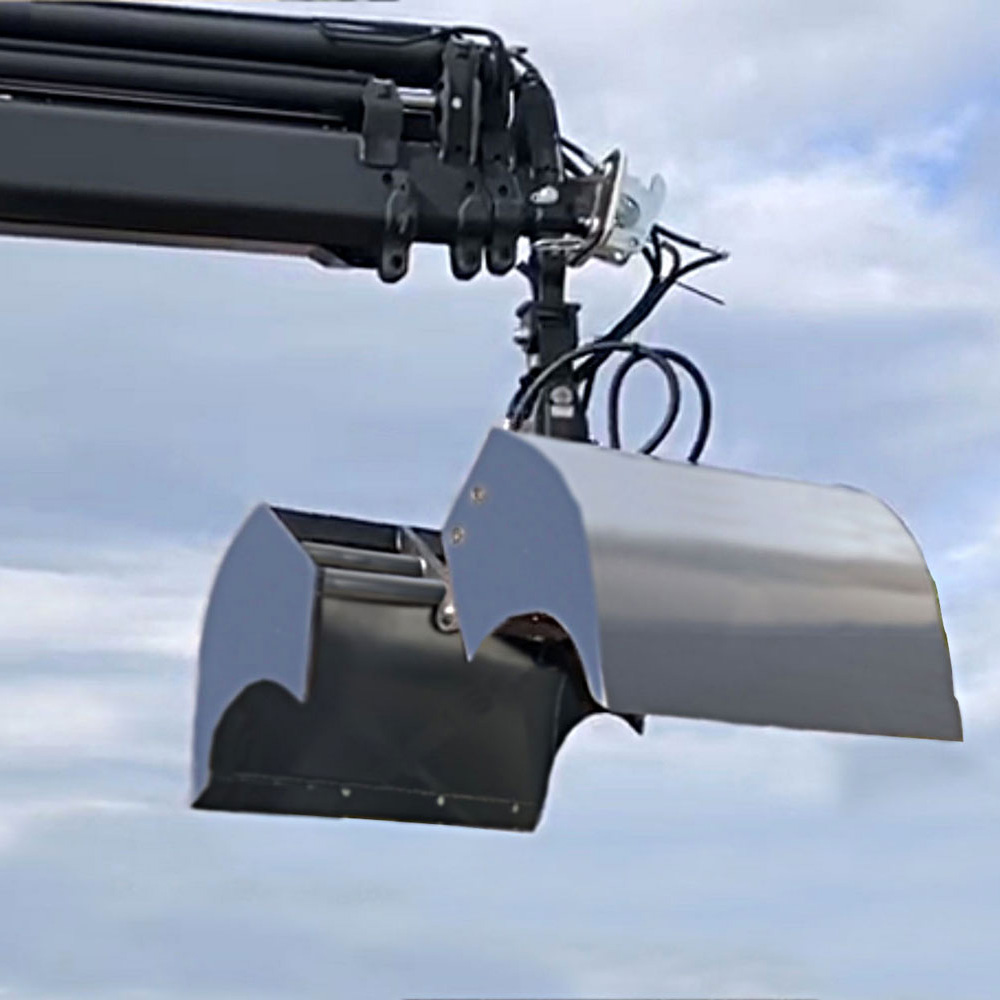

Clamshell bucket with hole
Uses
Description
Clamshell bucket with hole for scraps and materials with particular dimensions.
Technical table
| Models | Capacity | Weight | Teeth | A | B | C | D | L | Load capacity | Closing force | Pressure | Suitable for loader | Suitable for excavator | Suggested rotator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Um | lt | kg | n° | mm | mm | mm | mm | mm | kg | daN | bar | ton* | ton** | type |
| FCB 450 SX HOLE | 400 | 285 | - | 1045 | 1480 | 835 | 685 | 1000 | 1300 | 1600 | 250 | 0,8 - 2,5 | 4,0- 8,0 | FR 85 SXF |
| FCB 450 SX PLUS | 400 | 295 | - | 1045 | 1480 | 835 | 685 | 1000 | 1300 | 1600 | 250 | 0,8 - 2,5 | 4,0- 8,0 | FR 85 SXF - FR 128 SXF |
* price of the product vat excluded

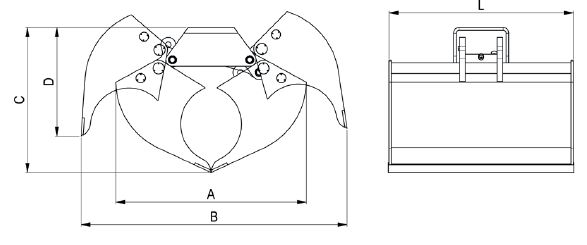

Technical schema
