FCA

FCA coolers

Air/oil coolers with custom fit fans for hydraulic motors.

Uses

Description

Air/oil coolers with custom fit fans for hydraulic motors. Made in aluminium to grant high resistance to pressure when operating and high heat exchange capacity in spite of the small overall dimensions. Suggested for hydraulic cranes.

Technical table

Models	Oil flow capacity	Fan	Performance (40°C)	Pressure	Protection	Noise level	Weight	Current
Um	l min - max	Ø mm	Kw	bar	IP	dba	kg	A
FCA 5-40	5-40	190	4,4	26	68	68	3	6,2(12V) - 3,1(24V)

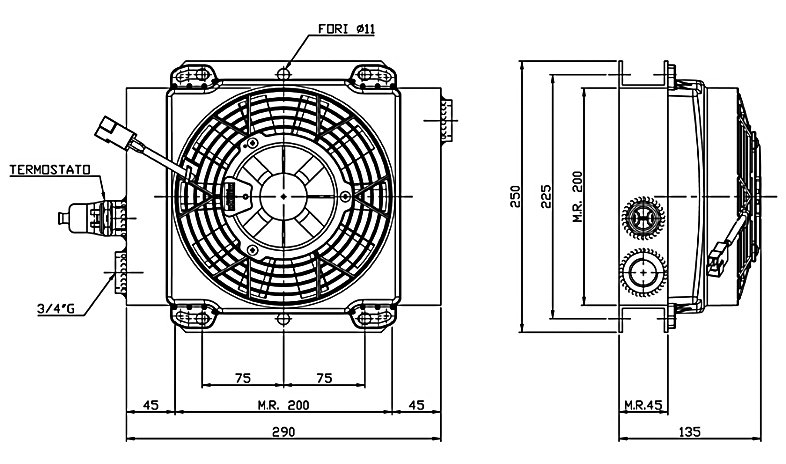

FCA 15-50	10-80	190	4,4	26	68	68	3,5	6,2(12V) - 3,1(24V)

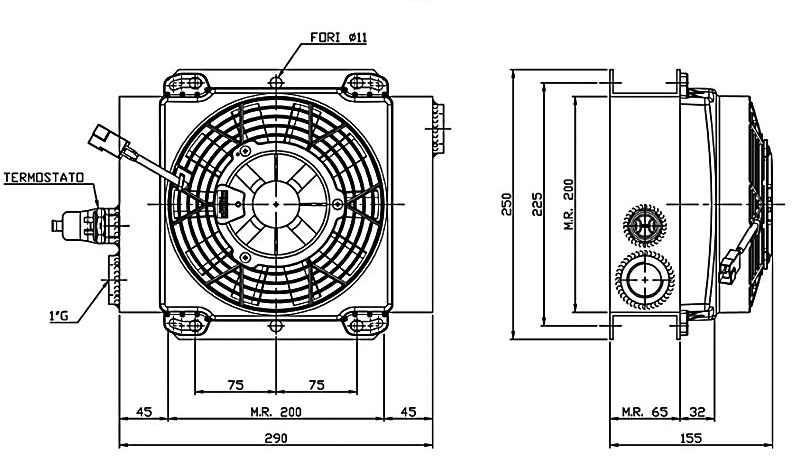

FCA 30-60	10-100	190	4,8	26	68	68	5	6,2(12V) - 3,1(24V)
FCA 20-100	20-100	225	5.6	26	68	78	6	7,7(12V) - 4,3(24V)

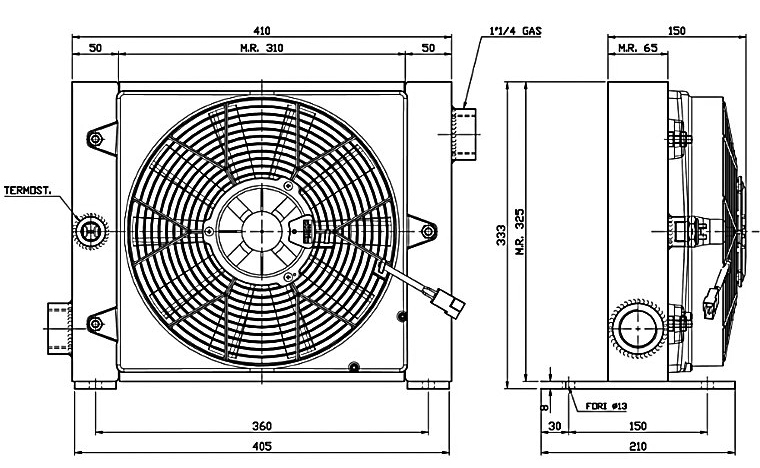

FCA 25-140	10-140	280	10,8	26	68	78	7	7,7(12V) - 4,3(24V)

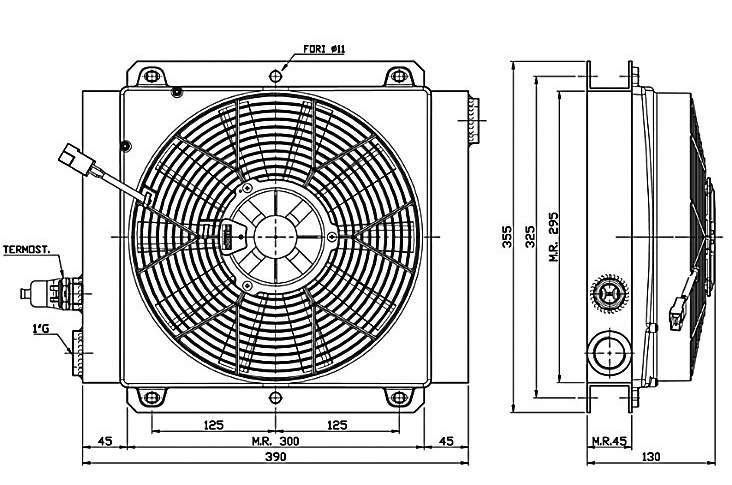

FCA 45-90	10-120	280	8,8	26	68	74	6	7,8(12V) - 3,9(24V)

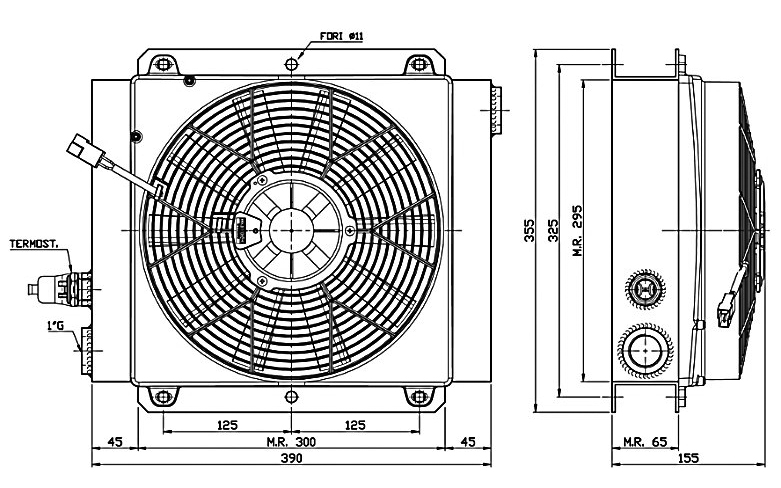

FCA 40-140	10-140	280	8,8	26	68	74	7	7,8(12V) - 3,9(24V)

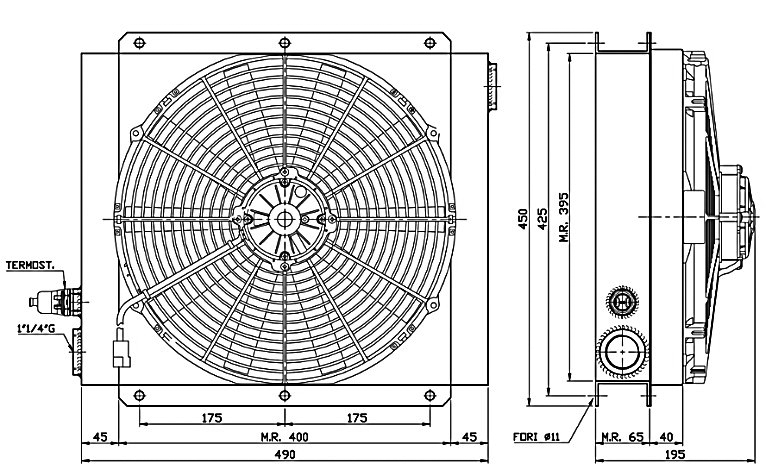

FCA 45-170	20-180	385	11,2	26	68	79	12	18,1(12V) - 8(24V)

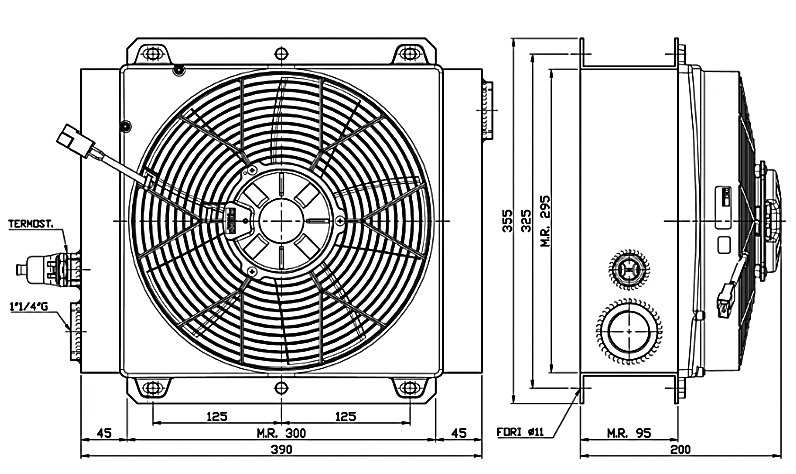

FCA 40-180	30-180	280	10,8	26	68	78	28	15,2(12V) - 7,1(24V)

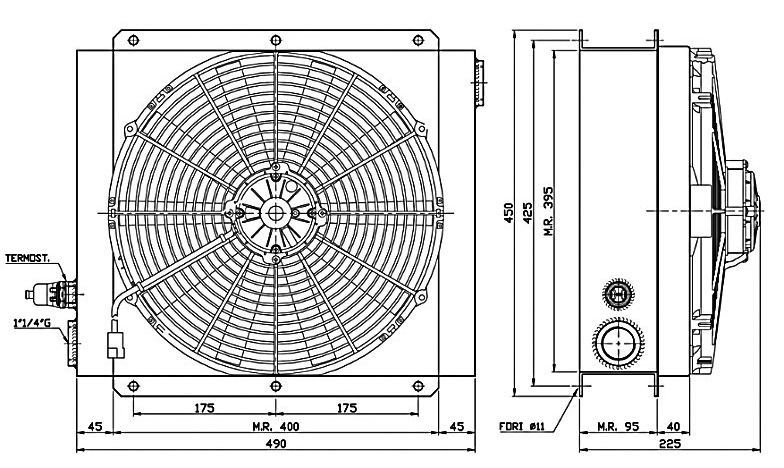

FCA 35-250	40-250	385	13,2	26	68	70	18	18,1(12V) - 8(24V)
FCA 40-320	40-320	280 x 2	28,8	26	68	85	40	16,6x2(12V) - 8x2(24V)
