FAB AUTO 250

FAB AUTO 250

Self levelling personnel platform for two persons made in steel

Uses
boom trucks
Suitable for telehandler

Description

Self levelling personnel platform for two persons made in steel. • COMPLETELY SELF-LEVELLING • 360° ARM’S ROTATION • MANUALLY ADJUSTABLE ELECTRONIC CARD THROUGH TRIMMER • ELECTRIC SUPPLY 12V – 24V • INNOVATIVE BALL-SYSTEM ROTARY ACTUATOR PATENTED • SAFETY VALVE TO LOCK OR UNLOCK THE ROTATION OF THE ARM *Inside the basket

Technical table
Models Dimensions Weight Load capacity Usage Capacity
Um mm Kg daN Kv persona
FAB AUTO 250 NO CE 700 x 1400 x 1150 155 250 1 2
FAB AUTO 250 CE EN280 700 x 1400 x 1150 155 200 1 2

* price of the product vat excluded

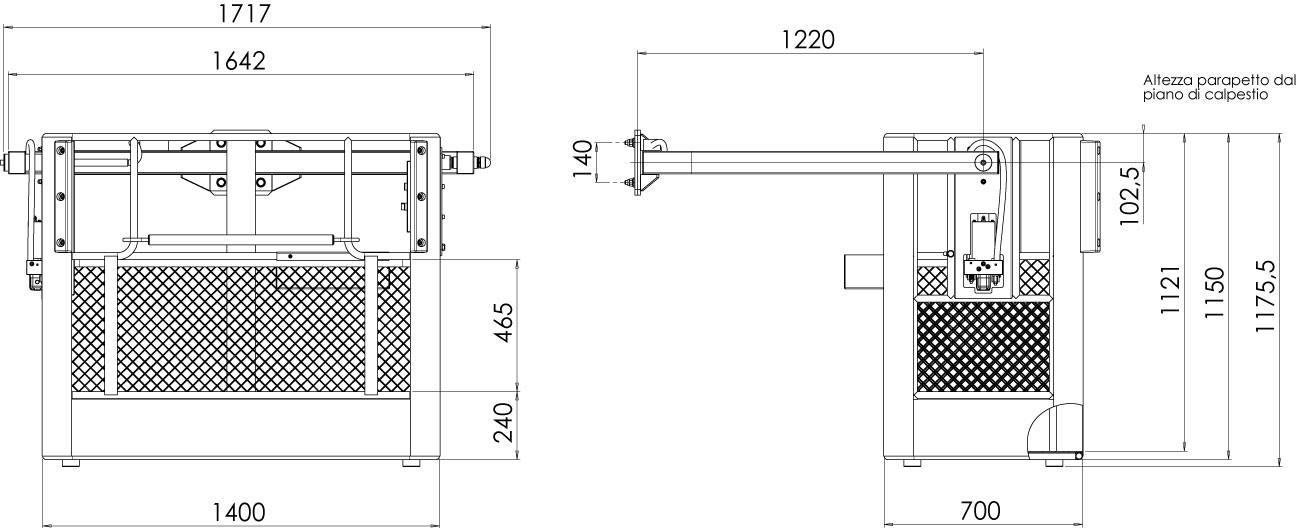

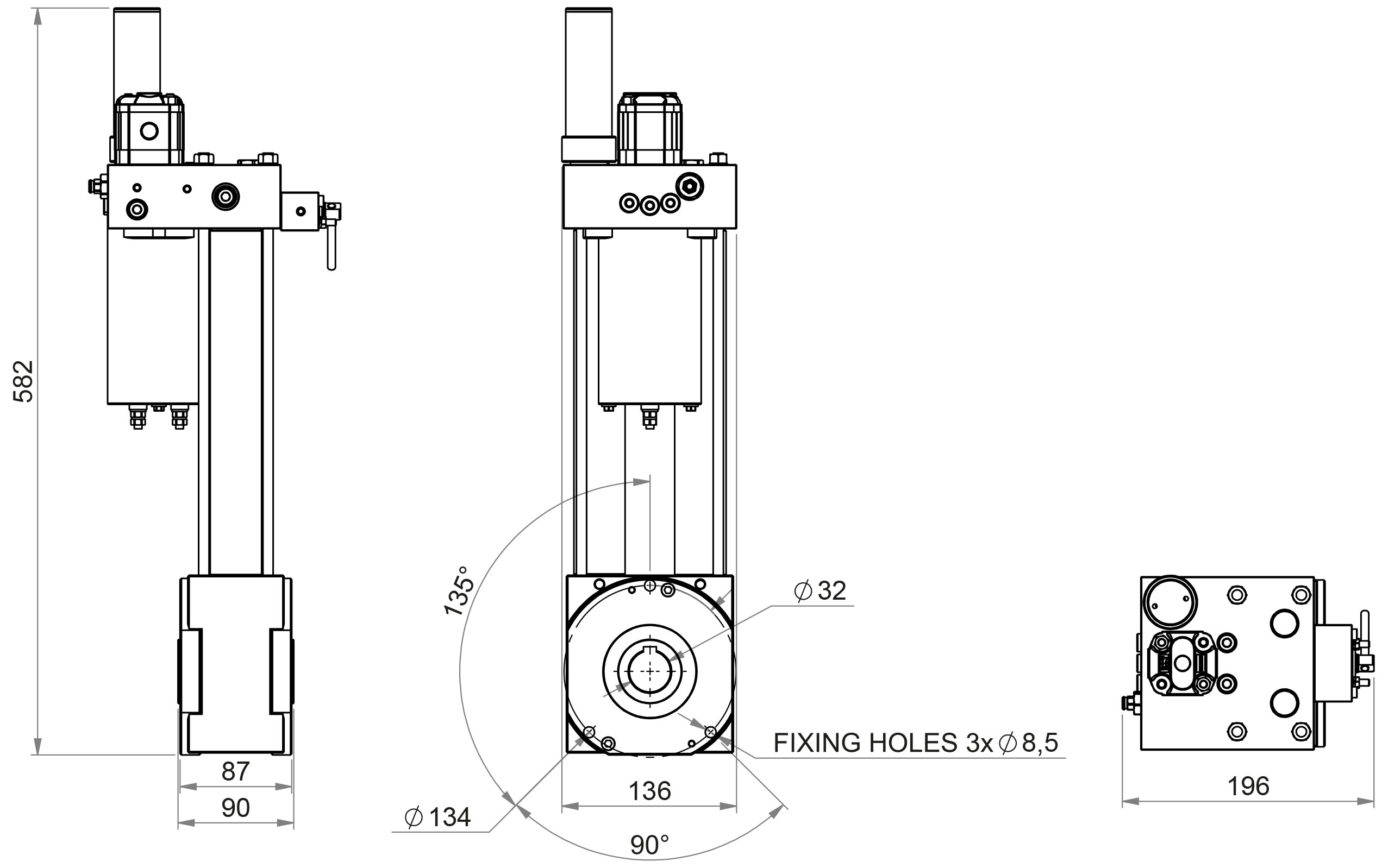

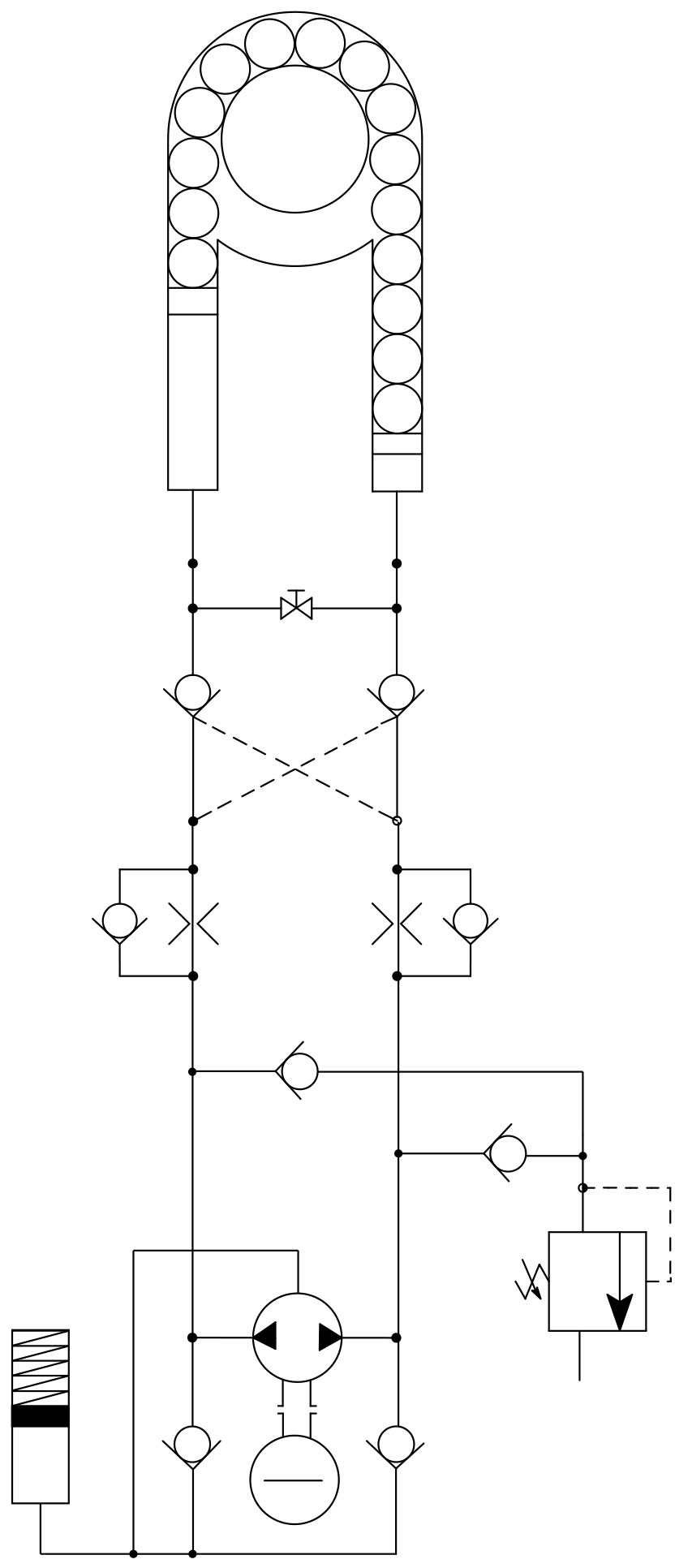

Technical schema
Video
Documentation PDF
FAB AUTO 250
