Additional hydraulic stabilizers EVO series

Uses
boom trucks
Suitable for aerial platforms
Description

EVOLUTION X stabilizer series, with internal hosing and hydraulic extension, all cylinders can be regulated in height through our new locking system, standard on all our models. Available with different length of the stabilizer cylinder, the lack of external hosing allows for a quick and easy installation and reduces the overall encumbrance.

Technical table
Models Crane R max Weight A B X hxb C Min C Max I D E F H M
Um Ton/m daN Kg mm mm mm mm mm mm mm mm mm mm mm mm
EVO 28 5.0/L HX 12>25 7000 520 2250 5000 5200 235x405 30 448 200 650 95 60 970 520
EVO 28 5.0 HX 12>25 7000 510 2250 5000 5200 235x405 30 282 200 500 95 60 830 370
EVO 28 5.0/S HX 12>25 7000 500 2250 5000 5200 235x405 30 182 200 400 95 60 680 220
EVO 38 5.0/L HX 19>36 9000 560 2250 5000 5200 235x405 30 448 200 650 95 60 970 520
EVO 38 5.0 HX 19>36 9000 550 2250 5000 5200 235x405 30 282 200 500 95 60 830 370
EVO 38 5.0/S HX 19>36 9000 540 2250 5000 5200 235x405 30 182 200 400 95 60 680 220
EVO 58 5.2/L HX 25>40 11000 620 2250 5200 5400 235x405 30 448 200 650 95 60 970 520
EVO 58 5.2 HX 25>40 11000 610 2250 5200 5400 235x405 30 282 200 500 95 60 830 370
EVO 58 5.2/S HX 25>40 11000 600 2250 5200 5400 235x405 30 182 200 400 95 60 680 220
EVO 68 6.0 HX 40>60 12500 650 2330 5950 6150 300x285 140 530 200 650 105 70 800 400
EVO 68 6.0/S HX 40>60 12500 630 2330 5950 6150 300x285 140 380 200 500 105 70 650 250
EVO 88 6.0 HX 70>100 20000 970 2350 6000 6200 330x315 140 530 200 600 125 90 900 435
EVO 88 6.0/S HX 70>100 20000 950 2350 6000 6200 330x315 140 380 200 450 125 90 750 300
EVO 108 7.2 HX 90>110 20000 1200 2300 7200 7400 320x585 140 380 200 450 125 90 750 360
EVO 118 8.2 HX 100>140 20000 1840 2320 8200 8400 330x620 140 380 200 450 125 90 750 360

* price of the product vat excluded

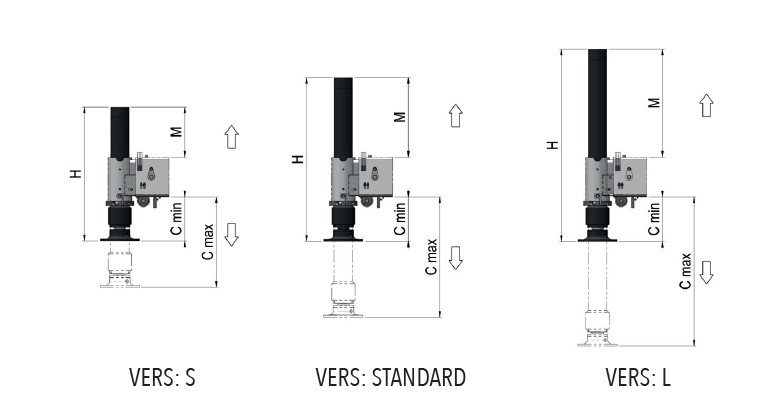

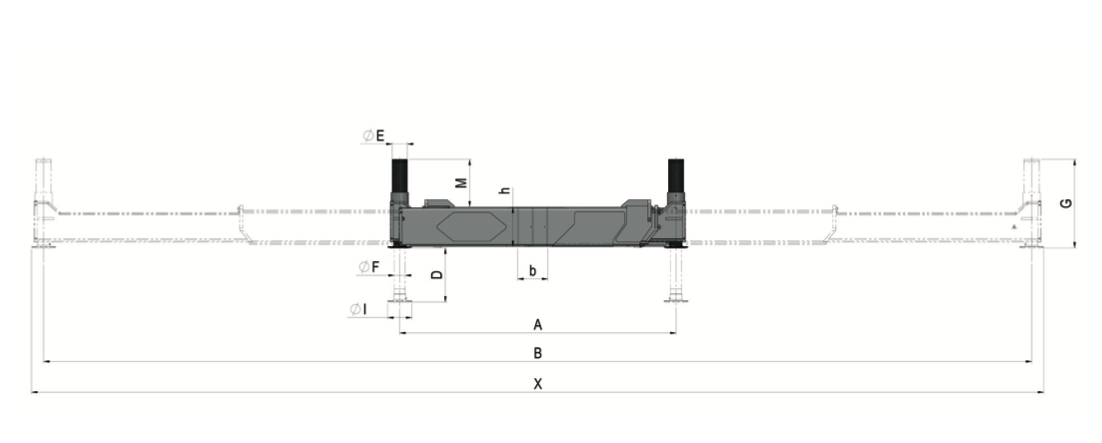

Technical schema
Documentation PDF
Catalog EVO models stabilizer
