FBG

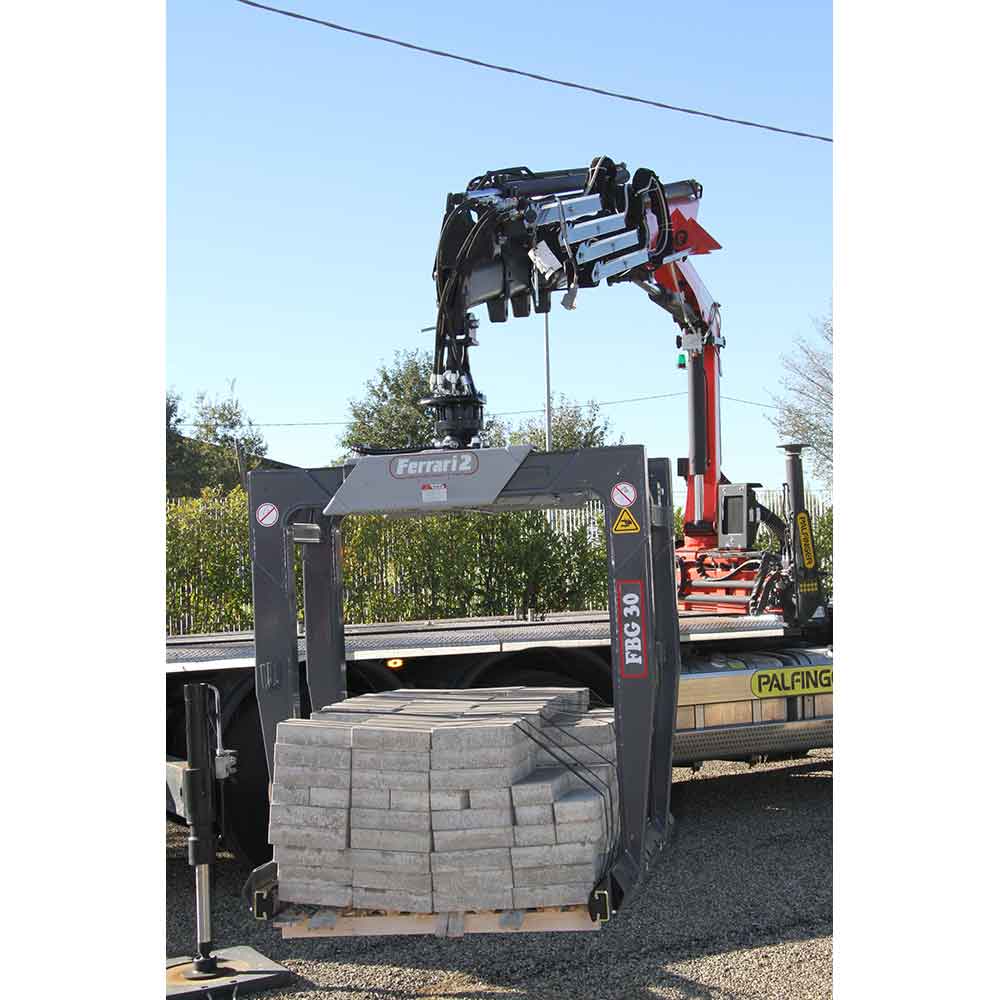

Brick grabs FBG

Brick grabs

Uses
boom trucks
Suitable for tower cranes

Description

Brick Grabs are light weight construction in high tensile steel, and fully hydraulically adjustable opening range, along with a variety of different models of rubber clamps.

Technical table
Models Height C Width A Clamp Lenght B Max Capacity Weight Suggested rotator
Um mm mm mm Kg Kg type
FBG 20-100 1000 370 - 1370 1250 2000 350 FR 50 F
FBG 25-100 1000 370 - 1370 1250 2500 365 FR 50 F
FBG 30-100 1000 370 - 1370 1250 3000 375 FR 50 F
FBG 20 - 123 1230 370 - 1370 1250 2000 390 FR 50 F
FBG 25 - 123 1230 370 - 1370 1250 2500 400 FR 50 F
FBG 30 - 123 1230 370 - 1370 1250 3000 410 FR 50 F
FBG 20 - 130 1300 370 - 1370 1250 2000 430 FR 50 F
FBG 25- 130 1300 370 - 1370 1250 2500 440 FR 50 F
FBG 30 - 130 1300 370 - 1370 1250 3000 450 FR 50 F
FBG R 20 1100 - 1650 370 - 1370 1250 2000 - 1350 360 FR 50 F
FBG R 25 1100 - 1650 370 - 1370 1250 2500 - 1900 380 FR 50 F

* price of the product vat excluded

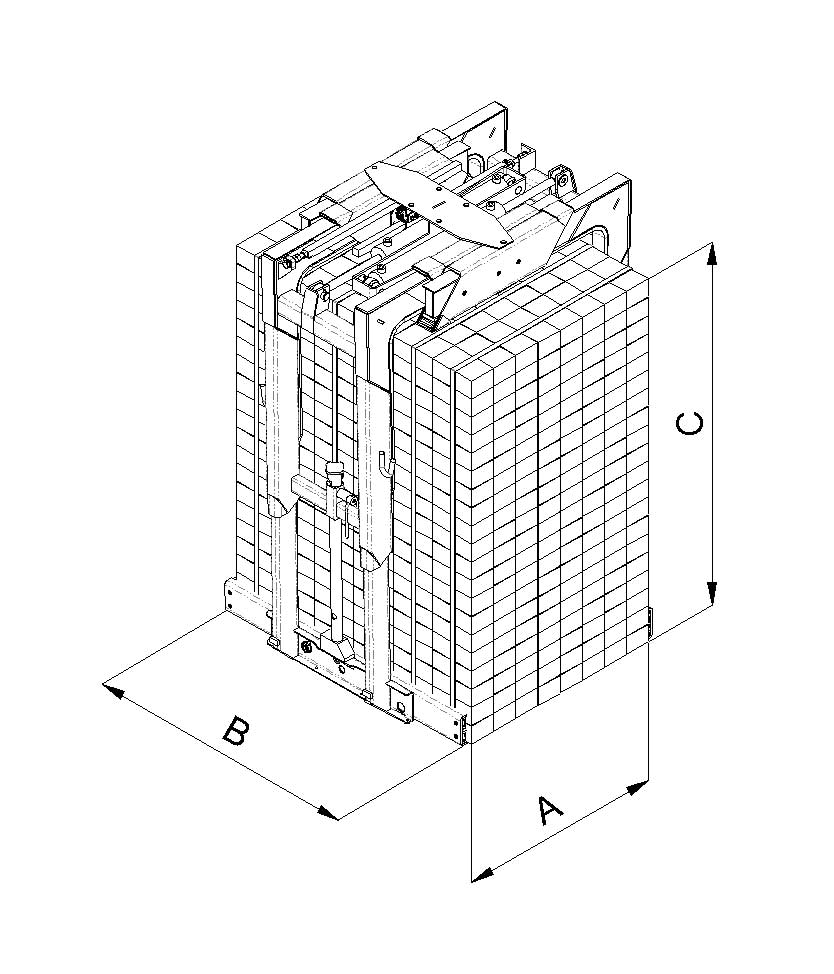

Technical schema
Documentation PDF
Catalog FBG
